Tutorial. LISA and :math:`gamma`-ray telescopes as multi-messenger probes of a first-order cosmological phase transition
Tutorial that shows how to use CosmoGW to compute the GW spectrum from sound waves and turbulence in a first-order phase transition.
It follows the description presented in [RoperPol:2023bqa]: “LISA and γ-ray telescopes as multi-messenger probes of a first-order cosmological phase transition,” A. Roper Pol, A. Neronov, C. Caprini, T. Boyer and D. Semikoz, arXiv:2307.10744 (2023)
Created by Alberto Roper Pol (alberto.roperpol@unige.ch), 23/07/2025
[1]:
## Install CosmoGW from https://pypi.org/project/cosmoGW/
# !pip install cosmoGW
## Make sure to have latex installed for plots, the following is
## required when executing from google colab
# !sudo apt-get update
# !sudo apt-get install -y cm-super dvipng texlive-latex-extra texlive-latex-recommended
Comprehensive documentation of CosmoGW is available at Read the Docs.
[1]:
from cosmoGW import cosmology, GW_templates, plot_sets, interferometry, hydro_bubbles, GW_back, analysis, GW_models
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import astropy.units as u
cmap = plt.get_cmap('rainbow_r')
darken_factor = .9 # Adjust this factor to control darkness
cs2 = 1/3 # default value for sound speed squared is 1/3
cs = np.sqrt(cs2)
# directory to save figures
dirr_figs = 'GWs_MFs_from_FOPT/'
plot_sets.ensure_dir('plots/' + dirr_figs)
Directory created: plots/GWs_MFs_from_FOPT/
We compute the GW background using the models presented in RoperPol:2023bqa for sound waves and turbulence, available in CosmoGW by the functions OmGW_spec_sw and OmGW_spec_turb
[78]:
# Phase transition parameters
alpha = 2
beta = 5
vw = .999999999
eps_turb = 1
T = 100*u.MeV
# relativistic and adiabatic degrees of freedom
g = cosmology.thermal_g(T=T, s=0, file=True)
gS = cosmology.thermal_g(T=T, s=1, file=True)
# Range of frequencies, normalized by the mean bubble separation, s = f R_ast
s = np.logspace(-3, 4, 1000)
# Spectrum from sound waves using SSM (Hindmarsh:2019phv)
freqs_sw, OmGW_sw = \
GW_templates.OmGW_spec_sw(s, alpha, beta, vws=vw, expansion=True, Nsh=1.,
model_efficiency='fixed_value', model_K0='Espinosa',
model_decay='sound_waves', model_shape='sw_SSM',
redshift=True, gstar=g, gS=gS, T=T)
# Spectrum from sound waves using fit based on HL simulations (RoperPol:2023bqa, Jinno:2022mie)
freqs_sw_HL, OmGW_sw_HL = \
GW_templates.OmGW_spec_sw(s, alpha, beta, vws=vw, expansion=True, Nsh=1.,
model_efficiency='fixed_value', model_K0='Espinosa',
model_decay='sound_waves', model_shape='sw_HL',
redshift=True, gstar=g, gS=gS, T=T)
# Spectrum from MHD turbulence based on the constant-in-time model (RoperPol:2023bqa, Jinno:2022mie)
freqs_turb, OmGW_turb = \
GW_templates.OmGW_spec_turb_alphabeta(s, alpha, beta, vws=vw,
eps_turb=eps_turb, redshift=True,
gstar=g, gS=gS, T=T)
## LISA PLS with SNR = 10 and 4 years of observation
f_LISA, OmLISA, LISA_OmPLS = interferometry.read_sens(SNR=10, T=4)
[25]:
import pandas as pd
A = pd.read_csv('../test_PTA_v11.csv', names=['f', 'Om'])
Af = A['f'].values
AOm = A['Om'].values
# print(AOm)
AOms = np.logspace(np.log10(AOm[0]), np.log10(AOm[-1]), 100)
Afs = np.interp(AOms, AOm, Af)
print(Af)
plt.plot(Afs, AOms)
A = pd.read_csv('../test_PTA_v12.csv', names=['f', 'Om'])
Af = A['f'].values
AOm = A['Om'].values
# print(AOm)
AOms = np.logspace(np.log10(AOm[0]), np.log10(AOm[-1]), 100)
Afs = np.interp(AOms, AOm, Af)
print(Af)
plt.plot(Afs, AOms)
plt.loglog()
[3.06759568e-09 3.05612278e-09 3.02074956e-09 2.97393088e-09
2.92779271e-09 2.89368174e-09 2.88263702e-09 2.90593359e-09
2.96436203e-09 3.01200524e-09 3.04831000e-09 3.07308764e-09
3.08576599e-09]
[3.07958649e-09 3.09229166e-09 3.11737873e-09 3.15505088e-09
3.20585771e-09 3.24449904e-09 3.27066963e-09 3.24564993e-09
3.19529625e-09 3.14567526e-09 3.10907374e-09 3.08514749e-09
3.08567083e-09]
[25]:
[]

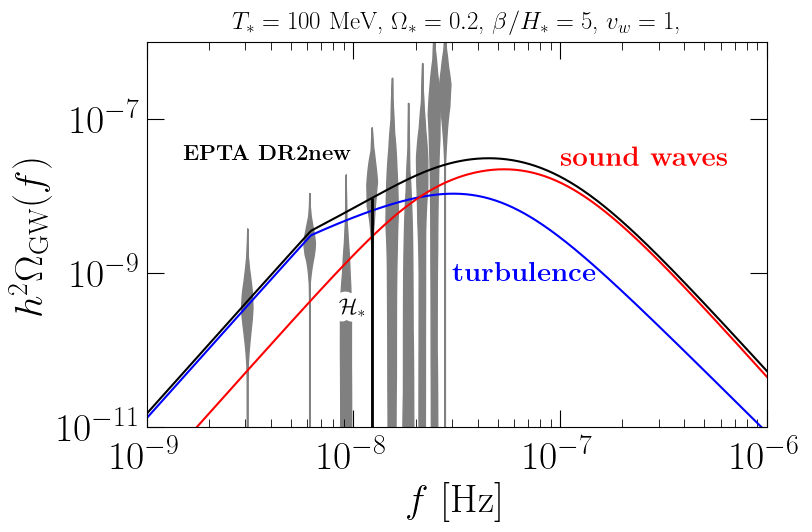

For illustration, let’s generate the plot of the GW spectra for a particular phase transition, described by the parameters \(\alpha = 0.5\), \(\beta/H_\ast = 10\), \(v_w =0.95\), \(\varepsilon_{\rm turb} = 1\), \(T_\ast = 100\) GeV
[116]:
import matplotlib.patheffects as pe
plt.figure(figsize=(8,5))
# plot GWB from sound waves and turbulence
# plt.loglog(freqs_sw, OmGW_sw, color='red', ls='dashed')
plt.loglog(freqs_turb, OmGW_turb, color='blue')
plt.loglog(freqs_sw_HL, OmGW_sw_HL, color='red')
# plot GWB of the sum
plt.loglog(freqs_sw_HL, OmGW_sw_HL + OmGW_turb, color='black')
plot_sets.axes_lines()
# SNR for this signal
print('SNR: ', interferometry.SNR(freqs_sw_HL, OmGW_sw_HL + OmGW_turb,
f_LISA, OmLISA, T=4))
plt.xlim(1e-9, 1e-6)
plt.ylim(1e-11, 1e-6)
# plt.yticks(np.logspace(-14, -8, 7))
# plt.xticks(np.logspace(-6, -1, 6))
# ## Hubble scale
Hs = cosmology.Hs_val(g=g, T=T)*cosmology.as_a0_rat(g=g, T=T)
plt.vlines(Hs.value, 1e-15, np.interp(Hs.value, freqs_turb.value, OmGW_turb + OmGW_sw_HL),
color='black', lw=2)
plt.text(8.5e-9, 3e-10, r'${\cal H}_*$', color='black', fontsize=16,
path_effects=[pe.withStroke(linewidth=10, foreground='w')])
## fluid length scales in sound waves
# lf = hydro_bubbles.Rstar_beta(vws=vw, corr=True)/beta
# plt.vlines(Hs.value/lf, 1e-15, np.interp(Hs.value/lf, freqs_sw_HL.value, OmGW_sw_HL),
# color='red', lw=.7)
# plt.text(3e-5, 2e-14, r'$\lambda_*^{-1}$', color='red', fontsize=16)
# Dw = abs(vw - cs)/vw # sound-shell thickness
# plt.vlines(Hs.value/lf/Dw, 1e-15, np.interp(Hs.value/lf/Dw, freqs_sw_HL.value, OmGW_sw_HL),
# color='red', lw=.7)
# plt.text(1.7e-4, 5e-13, r'$\delta \lambda_*^{-1}$', color='red', fontsize=16)
## spectral peak position of the turbulence spectrum fturb
_, fGW, _ = GW_templates.pPi_fit(1)
# plt.vlines(Hs.value/lf*fGW, 1e-15, np.interp(Hs.value/lf*fGW, freqs_turb.value, OmGW_turb),
# color='blue', lw=.7)
# plt.text(9.5e-5, 5e-12, r'$f_{\rm turb}$', color='blue', fontsize=16,
# path_effects=[pe.withStroke(linewidth=5, foreground='w')])
## position of the spectral break at the inverse duration of turbulence
Om = .5*hydro_bubbles.kappas_Esp(vw, alpha)*alpha/(1 + alpha)*eps_turb
dtfin = GW_models.N_turb/np.sqrt(2*Om/(1 + cs2))
str_tit = r'$T_\ast = %.0f$ MeV, $\Omega_\ast = %.1f$,'%(T.value, Om)
str_tit += r' $\beta/H_\ast = %.0f$, $v_w = %.0f$,'%(beta, vw)
# str_tit += r' $\varepsilon_{\rm turb} = %.0f$'%(eps_turb)
plt.title(str_tit, fontsize=18, pad=10)
# plt.vlines(Hs.value/lf/dtfin, 1e-15, np.interp(Hs.value/lf/dtfin, freqs_turb.value, OmGW_turb),
# color='blue', lw=.7)
# plt.text(4.5e-6, 7e-14, r'$\delta t_{\rm fin}^{-1}$', color='blue', fontsize=16)
plt.text(1e-7, 2.5e-8, r'{\bf sound waves}', color='red',
path_effects=[pe.withStroke(linewidth=8, foreground='w')])
# plt.text(1.2e-7, 4e-8, r'(HL and SSM)', color='red', fontsize=18,
# path_effects=[pe.withStroke(linewidth=5, foreground='w')])
plt.text(3e-8, 8e-10, r'{\bf turbulence}', color='blue')
plt.text(1.5e-9, 3e-8, r'{\bf EPTA DR2new}', color='black', fontsize=16)
# plt.text(1e-2, 3.5e-13, r'{LISA}', color='green', fontsize=20)
plt.xlabel('$f$ [Hz]')
plt.ylabel(r'$h^2 \Omega_{\rm GW} (f)$')
# plt.plot(f_LISA, OmLISA, lw=1, alpha=.7, color='darkgreen', ls='dashed')
# plt.plot(f_LISA, LISA_OmPLS, lw=3, alpha=.7, color='darkgreen')
# plot_sets.save_fig(name='GW_turb_sws_example')
for i in range(0, 9):
A = pd.read_csv('../test_PTA_v%i1.csv'%int(i+1), names=['f', 'Om'])
Af = A['f'].values
AOm = A['Om'].values
AOms = np.logspace(np.log10(AOm[0]), np.log10(AOm[-1]), 100)
Afs1 = np.interp(AOms, AOm, Af)
A = pd.read_csv('../test_PTA_v%i2.csv'%int(i+1), names=['f', 'Om'])
Af = A['f'].values
AOm = A['Om'].values
Afs2 = np.interp(AOms, AOm, Af)
plt.fill_between(Afs1, AOms, AOms*0, color='gray', alpha=1)
plt.fill_between(Afs2, AOms, AOms*0, color='gray', alpha=1)
plot_sets.save_fig(name='GW_turb_sws_example_QCD')
SNR: 5.077402761690654e-06
Figure already exists: GW_turb_sws_example_QCD.png
Comparing output to existing figure
Images differ more than allowed tolerance (0.01)
Saving figure in plots/GW_turb_sws_example_QCD.png
[109]:
pwd
[109]:
'/Users/albertoroperpol/CosmoGW/tutorials'
[ ]:
alphas = np.logspace(-3, 0, 4)
betas = np.logspace(0, 3.2, 3)
TTs = np.logspace(0, 6, 13)*u.GeV
vws = np.linspace(0.4, .999, 13)
eps_turb = np.array([1e-10, 0.1, 1])

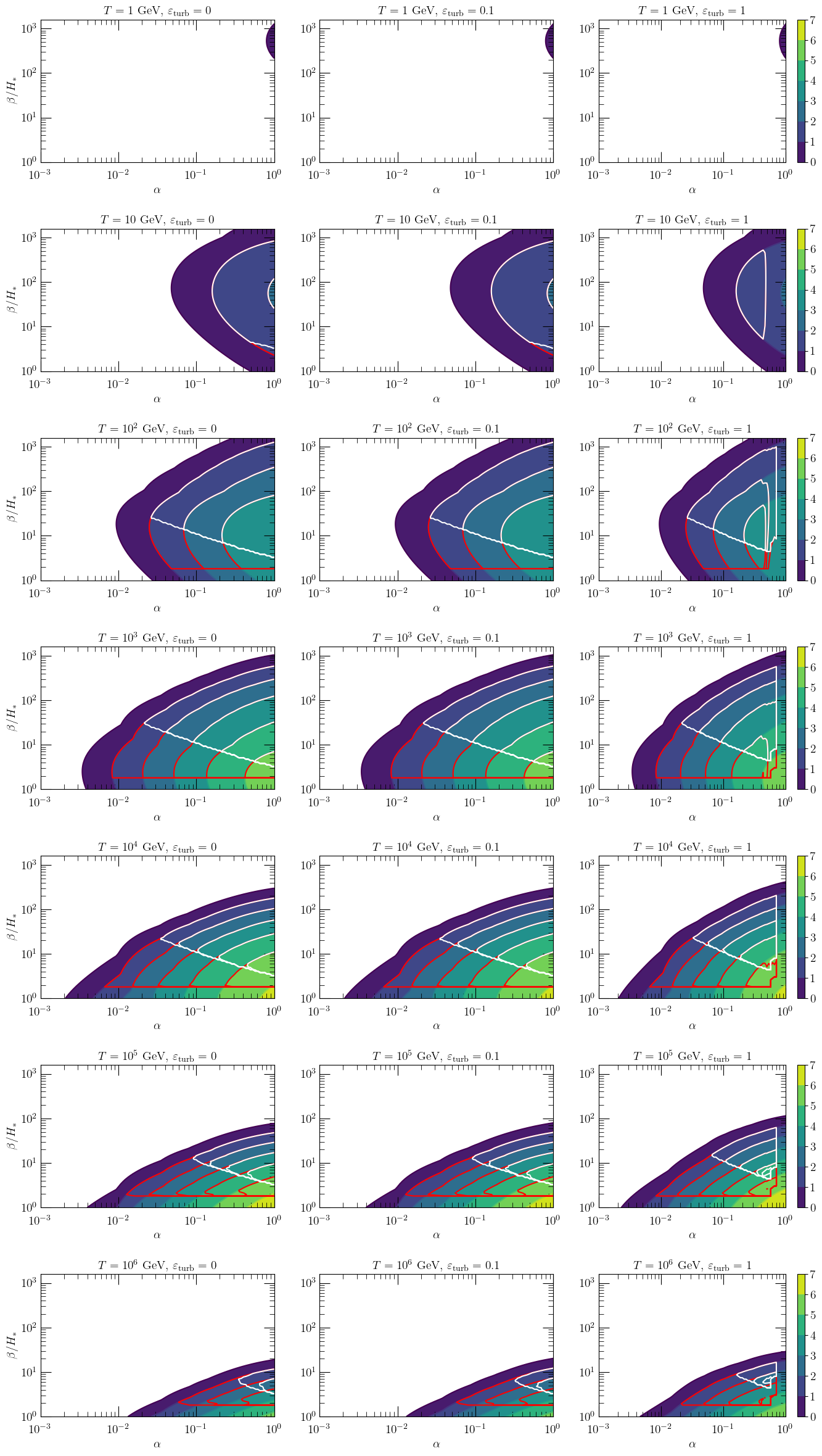

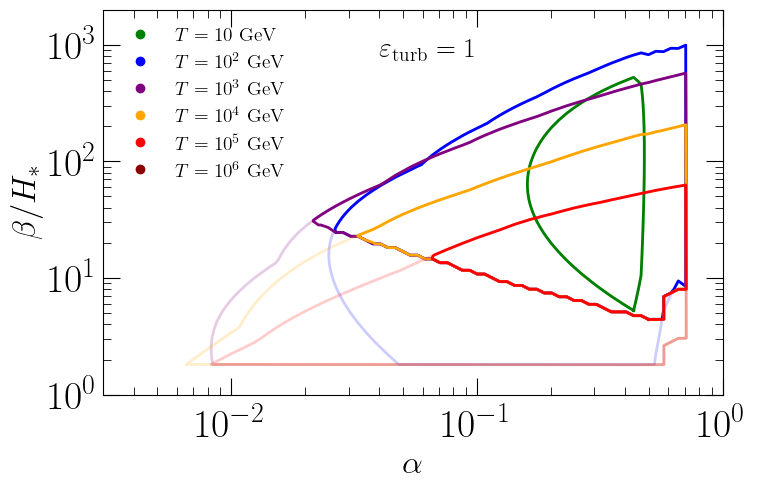

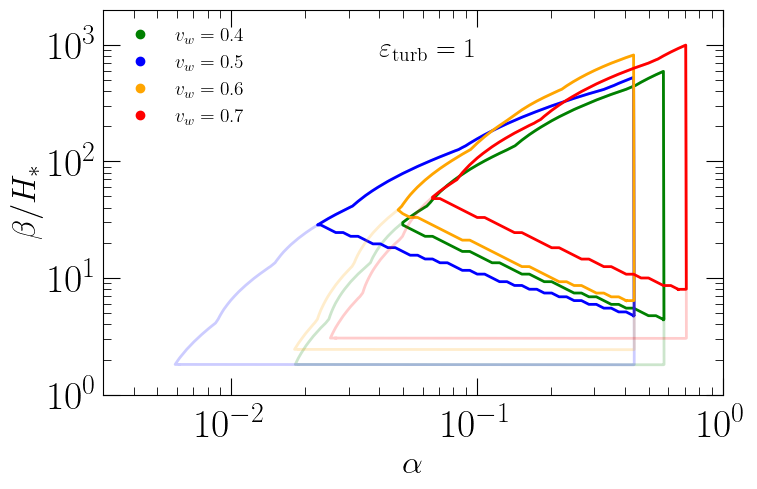

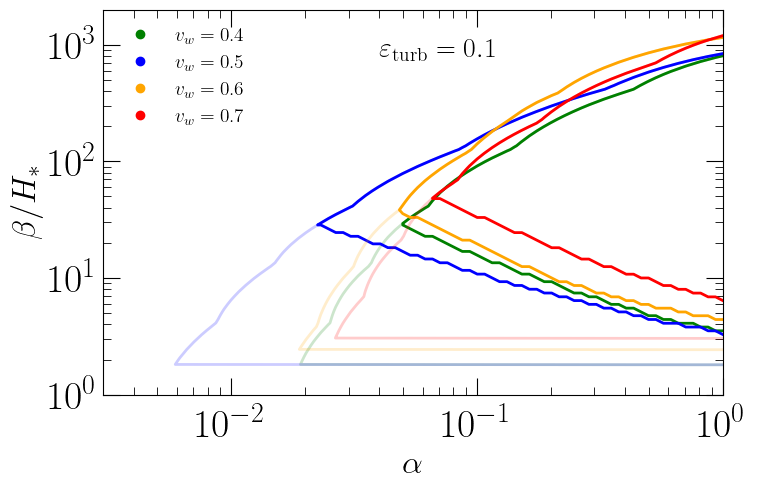

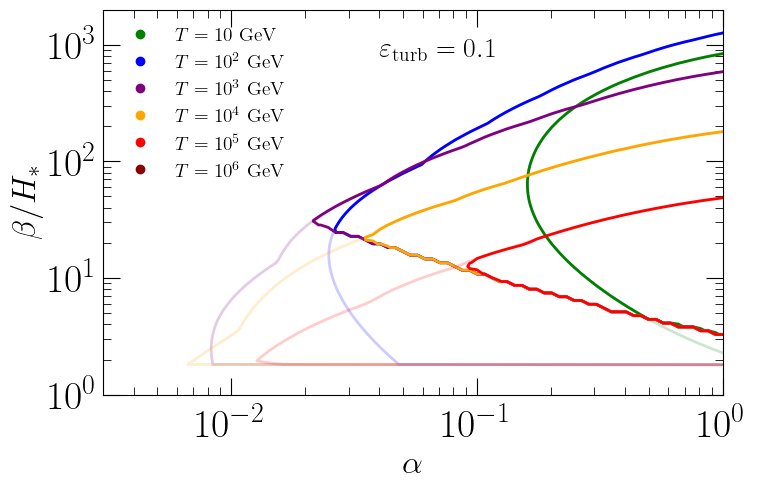

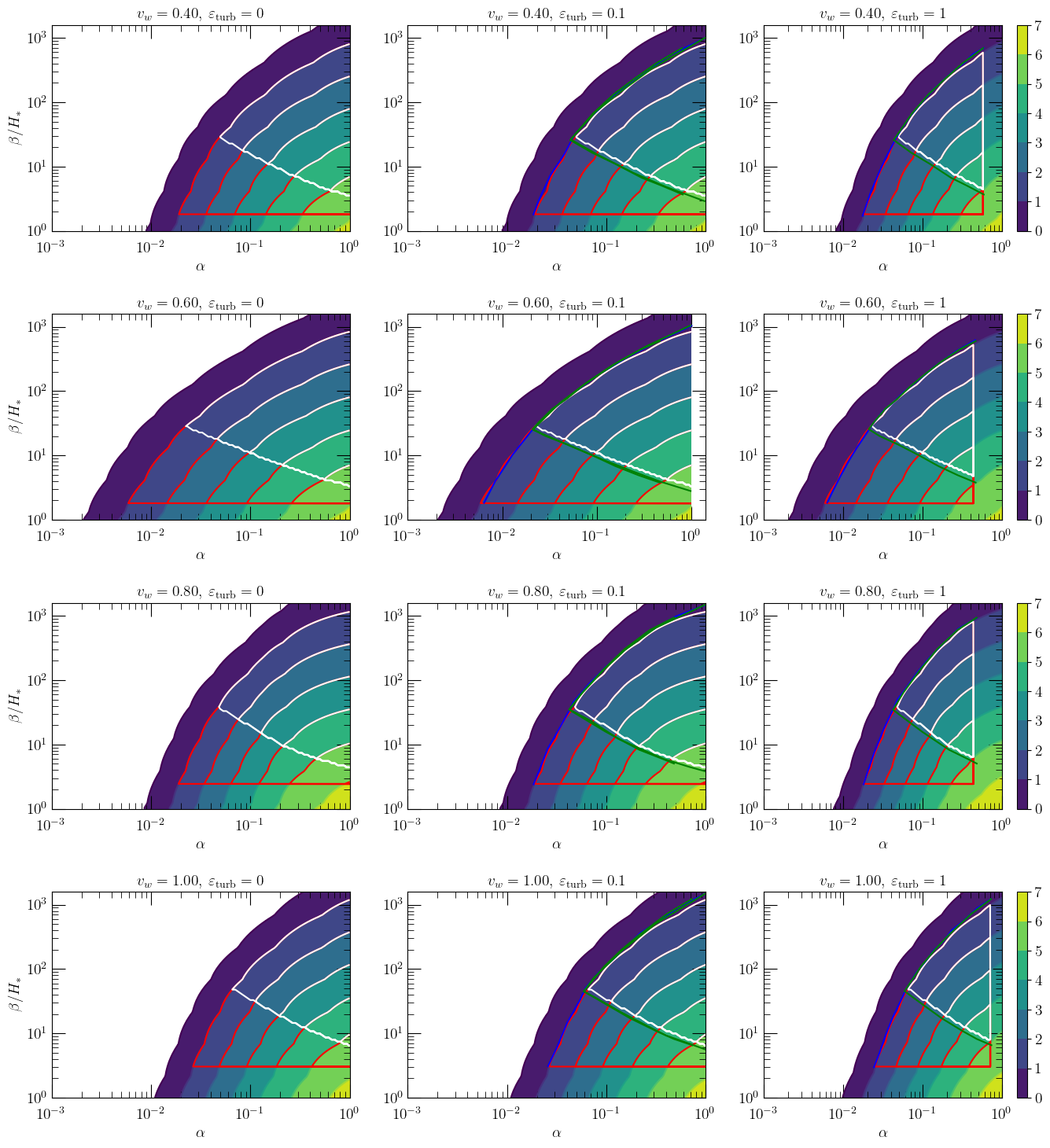

SNR = analysis.analysis_LISA_alphabeta(
s, alphas, betas, vws, TTs, eps_turb=eps_turb, model_shape='sw_HL', turb=True
)
Computing spectra for eps_turb = 0.0
Computing spectra for eps_turb = 0.1
Computing spectra for eps_turb = 1.0
Redshifting spectra for T = 1e+00 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+00 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+01 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+01 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+02 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+02 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+03 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+03 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+04 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+04 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+05 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+05 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+06 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Computing spectra for eps_turb = 0.0
Computing spectra for eps_turb = 0.1
Computing spectra for eps_turb = 1.0
Redshifting spectra for T = 1e+03 MeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+03 MeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+04 MeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+04 MeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+05 MeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+05 MeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+06 MeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+06 MeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+07 MeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+07 MeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+08 MeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+08 MeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+09 MeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
[10]:
np.savez('../tests/sound_waves_turb_GWs/GW_background_spectra_SNR.npz',
freqs_sw=freqs_sw_HL, OmGW_sw=OmGWs_sw_HL,
freqs_turb=freqs_turb, OmGW_turb=OmGWs_turb,
SNR=SNR)
[9]:
import numpy as np
np.testing.assert_allclose(SNR, SNR2)
[8]:
%%time
alphas = np.logspace(-3, 0, 100)
betas = np.logspace(0, 3.2, 100)
TTs = np.logspace(0, 6, 13)*u.GeV
vws = np.linspace(0.4, .999, 13)
eps_turb = np.array([1e-10, 0.1, 1])
SNR = an.analysis_LISA_alphabeta(alphas, betas, vws, TTs, epsturb=eps_turb, turb=True, mins=-3, maxs=4, Nss=1000, Tobs=4)
# turb=True, mins=mins_ref,
# cs2=hb.cs2_ref, quiet=False,
# maxs=maxs_ref, Nss=Nss_ref,interf='LISA', Nturb=mod.N_turb,
# TDI=True, chan='A', expansion=True, Nsh=1.,
# a_sw=tmp.a_sw_ref, b_sw=tmp.b_sw_ref, c_sw=tmp.c_sw_ref,
# alp1_sw=0, alp2_sw=0, corrRs=True, model_efficiency='fixed_value',
# OmGW_tilde=tmp.OmGW_sw_ref, bs_HL_eff=20, model_K0='Espinosa',
# bs_k1HL=40, model_decay='sound_waves', interpolate_HL_decay=True,
# b=0, model_shape='sw_HL', strength='weak', interpolate_HL_shape=False,
# a_turb=tmp.a_turb, b_turb=tmp.b_turb, alp_turb=tmp.alp_turb,
# tdecay=tmp.tdecay_ref, alpPi=tmp.alpPi, fPi=tmp.fPi, bPi=tmp.bPi_vort,
# interpolate_HL_n3=False, h0=1., Neff=co.Neff_ref, Tobs=4)
Computing spectra for eps_turb = 0.0
Computing spectra for eps_turb = 0.1
Computing spectra for eps_turb = 1.0
Redshifting spectra for T = 1e+00 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+00 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+01 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+01 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+02 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+02 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+03 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+03 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+04 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+04 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+05 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 3e+05 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
Redshifting spectra for T = 1e+06 GeV
Redshifting spectra for eps_turb = 0.0 and computing SNR
Redshifting spectra for eps_turb = 0.1 and computing SNR
Redshifting spectra for eps_turb = 1.0 and computing SNR
CPU times: user 11min 55s, sys: 1min 42s, total: 13min 38s
Wall time: 16min 55s
[31]:
TTs = np.logspace(0, 6, 13)*u.GeV
print(isinstance(TTs, (list, tuple, np.ndarray, u.Quantity)))
True
[9]:
lfs = np.zeros_like(SNR)
lf = hb.Rstar_beta(vws=vws, corr=True)
for i in range(0, len(betas)):
for j in range(0, len(vws)):
lfs[:, :, j, :, i] = lf[j]/betas[i]
Oms = np.zeros_like(SNR)
Om = hb.kappas_Esp(vws, alphas)*alphas/(1 + alphas)
epss = np.zeros_like(SNR)
tnonls = np.zeros_like(SNR)
for i in range(0, len(alphas)):
for j in range(0, len(vws)):
for p in range(0, len(eps_turb)):
Oms[p, :, j, i, :] = .5*Om[j, i]*eps_turb[p]
epss[p, :, :, :, :] = eps_turb[p]
for l in range(0, len(betas)):
tnonls[p, :, j, i, l] = lfs[p, :, j, i, l]/np.sqrt(2*Oms[p, :, j, i, l]/eps_turb[p]/(1 + cs2))
# SNR_mask = np.ma.masked_array(SNR, lfs > 1)
# SNR_mask = np.ma.masked_array(SNR_mask, Oms > np.minimum(0.1, 0.5*epss))
SNR_mask = SNR*1.0
SNR_mask[lfs > 1] = 1e-49
SNR_mask[Oms > np.minimum(0.1, 0.5*epss)] = 1e-49
# SNR_mask2 = np.ma.masked_array(SNR_mask, tnonls > 1)
SNR_mask2 = SNR_mask*1.0
SNR_mask2[tnonls > 1] = 1e-49
[10]:
SNR_TTs = np.max(SNR, axis=1)
SNR_vws = np.max(SNR, axis=2)
SNR_TTs2 = np.max(SNR_mask, axis=1)
SNR_vws2 = np.max(SNR_mask, axis=2)
SNR_TTs3 = np.max(SNR_mask2, axis=1)
SNR_vws3 = np.max(SNR_mask2, axis=2)
[12]:
class poss():
def __init__(self, alphas, betas):
self.alphas = alphas
self.betas = betas
pos = np.zeros((len(eps_turb), len(TTs)), dtype=poss)
[13]:
fig, axs = plt.subplots(4, 3, figsize=(14,15))
epss = np.array(['0', '0.1', '1'])
pos_TTs = np.zeros((len(eps_turb), 4), dtype=poss)
pos_TTs2 = np.zeros((len(eps_turb), 4), dtype=poss)
for p in range(0, len(eps_turb)):
l = 0
for i in [0, 4, 8, 12]:
# plt.figure(figsize=(8,5))
SNR_swap = np.swapaxes(SNR_TTs[p, i], 0, 1)
SNR_swap2 = np.swapaxes(SNR_TTs2[p, i], 0, 1)
SNR_swap3 = np.swapaxes(SNR_TTs3[p, i], 0, 1)
axs[l, p].tick_params(axis='x', labelsize=14)
axs[l, p].tick_params(axis='y', labelsize=14)
pc = axs[l, p].contour(alphas, betas, np.log10(SNR_swap), levels=np.linspace(0, 7, 8))
# pc2 = axs[l, p].contour(alphas, betas, np.log10(SNR_swap3), levels=np.linspace(0, 7, 8))
pcf = axs[l, p].contourf(alphas, betas, np.log10(SNR_swap), levels=np.linspace(0, 7, 8))
pc0 = axs[l, p].contour(alphas, betas, np.log10(SNR_swap2), levels=np.append(-50, np.linspace(1, 7, 7)), colors='red')
pc = axs[l, p].contour(alphas, betas, np.log10(SNR_swap3), levels=np.append(-50, np.linspace(1, 7, 7)), colors='white')
axs[l, p].loglog()
axs[l, p].set_yticks(np.logspace(0, 3, 4))
axs[l, p].set_title(r'$v_w = %.2f$, $\varepsilon_{\rm turb} = %s$'%(vws[i], epss[p]), fontsize=14)
plot_sets.axes_lines(ax=axs[l, p])
axs[l, p].set_xlabel(r'$\alpha$', fontsize=14)
paths = pc.get_paths()
vertices = paths[1].vertices.copy()
po = poss(vertices[:, 0], vertices[:, 1])
pos_TTs[p, l] = po
paths0 = pc0.get_paths()
vertices0 = paths0[1].vertices.copy()
po = poss(vertices0[:, 0], vertices0[:, 1])
pos_TTs2[p, l] = po
if i == 0:
df = pd.read_csv('vw04_eps1.csv', names=['alp', 'bet'])
df2 = pd.read_csv('vw04_eps1_2.csv', names=['alp', 'bet'])
df3 = pd.read_csv('vw04_eps01.csv', names=['alp', 'bet'])
df4 = pd.read_csv('vw04_eps01_2.csv', names=['alp', 'bet'])
if i == 4:
df = pd.read_csv('vw06_eps1.csv', names=['alp', 'bet'])
df2 = pd.read_csv('vw06_eps1_2.csv', names=['alp', 'bet'])
df3 = pd.read_csv('vw06_eps01.csv', names=['alp', 'bet'])
df4 = pd.read_csv('vw06_eps01_2.csv', names=['alp', 'bet'])
if i == 8:
df = pd.read_csv('vw08_eps1.csv', names=['alp', 'bet'])
df2 = pd.read_csv('vw08_eps1_2.csv', names=['alp', 'bet'])
df3 = pd.read_csv('vw08_eps01.csv', names=['alp', 'bet'])
df4 = pd.read_csv('vw08_eps01_2.csv', names=['alp', 'bet'])
if i == 12:
df = pd.read_csv('vw1_eps1.csv', names=['alp', 'bet'])
df2 = pd.read_csv('vw1_eps1_2.csv', names=['alp', 'bet'])
df3 = pd.read_csv('vw1_eps01.csv', names=['alp', 'bet'])
df4 = pd.read_csv('vw1_eps01_2.csv', names=['alp', 'bet'])
alps = np.array(df['alp'])
bets = np.array(df['bet'])
alps2 = np.array(df2['alp'])
bets2 = np.array(df2['bet'])
alps3 = np.array(df3['alp'])
bets3 = np.array(df3['bet'])
alps4 = np.array(df4['alp'])
bets4 = np.array(df4['bet'])
# axs[l, p].plot(pos_TTs[p, l].alphas, pos_TTs[p, l].betas, color='red', lw=2)
# axs[l, p].plot(pos_TTs2[p, l].alphas, pos_TTs2[p, l].betas, color='red', lw=2, ls='dashed')
if p == 0: axs[l, p].set_ylabel(r'$\beta/H_\ast$', fontsize=14)
if p == 2:
cbar = fig.colorbar(pcf, ax=axs[l, p])
ticklabs = cbar.ax.get_yticklabels()
cbar.ax.set_yticklabels(ticklabs, fontsize=14)
axs[l, p].plot(alps, bets, color='blue')
axs[l, p].plot(alps2, bets2, color='green')
if p == 1:
axs[l, p].plot(alps3, bets3, color='blue')
axs[l, p].plot(alps4, bets4, color='green')
axs[l, p].plot(alps2, bets2, color='green')
l += 1
fig.tight_layout()
[14]:
plt.figure(figsize=(8, 5))
cols = cmap(np.linspace(0, 1, 4))
cols = tuple(component * darken_factor for component in cols)
cols = ['green', 'blue', 'orange', 'red']
lss = ['solid', 'solid', 'dotted']
for p in [1]:
l = 0
for i in [0, 2, 4, 6]:
plt.loglog(pos_TTs2[p, l].alphas, pos_TTs2[p, l].betas, color=cols[l], ls=lss[p], lw=2, alpha=.2)
plt.loglog(pos_TTs[p, l].alphas, pos_TTs[p, l].betas, color=cols[l], ls=lss[p], lw=2)
if p == 1: plt.plot([], [], 'o', color=cols[l], label=r'$v_w = %.1f$'%vws[i])
l+= 1
plot_sets.axes_lines()
plt.text(4e-2, 8e2, r'$\varepsilon_{\rm turb} = 0.1$')
plt.xlabel(r'$\alpha$', fontsize=24)
plt.ylabel(r'$\beta/H_\ast$', fontsize=24)
plt.xlim(3e-3, 1)
plt.ylim(1, 2e3)
plt.legend(fontsize=14, loc='upper left', frameon=False, framealpha=1)
[14]:
<matplotlib.legend.Legend at 0x12755bb60>
[15]:
plt.figure(figsize=(8, 5))
cols = cmap(np.linspace(0, 1, 4))
cols = tuple(component * darken_factor for component in cols)
cols = ['green', 'blue', 'orange', 'red']
lss = ['solid', 'solid', 'solid']
for p in [2]:
l = 0
for i in [0, 2, 4, 6]:
plt.loglog(pos_TTs2[p, l].alphas, pos_TTs2[p, l].betas, color=cols[l], ls=lss[p], lw=2, alpha=.2)
plt.loglog(pos_TTs[p, l].alphas, pos_TTs[p, l].betas, color=cols[l], ls=lss[p], lw=2)
if p == 2: plt.plot([], [], 'o', color=cols[l], label=r'$v_w = %.1f$'%vws[i])
l+= 1
plot_sets.axes_lines()
plt.text(4e-2, 8e2, r'$\varepsilon_{\rm turb} = 1$')
plt.xlabel(r'$\alpha$', fontsize=24)
plt.ylabel(r'$\beta/H_\ast$', fontsize=24)
plt.xlim(3e-3, 1)
plt.ylim(1, 2e3)
plt.legend(fontsize=14, loc='upper left', frameon=False, framealpha=1)
[15]:
<matplotlib.legend.Legend at 0x16429b610>
[17]:
fig, axs = plt.subplots(7, 3, figsize=(14,24))
epss = np.array(['0', '0.1', '1'])
Tss = ['1', '10', '10^2', '10^3', '10^4', '10^5', '10^6']
pos_vws = np.zeros((len(eps_turb), 7), dtype=poss)
pos_vws2 = np.zeros((len(eps_turb), 7), dtype=poss)
for p in range(0, len(eps_turb)):
l = 0
for i in [0, 2, 4, 6, 8, 10, 12]:
# plt.figure(figsize=(8,5))
SNR_swap = np.swapaxes(SNR_vws[p, i], 0, 1)
SNR_swap2 = np.swapaxes(SNR_vws2[p, i], 0, 1)
SNR_swap3 = np.swapaxes(SNR_vws3[p, i], 0, 1)
axs[l, p].tick_params(axis='x', labelsize=14)
axs[l, p].tick_params(axis='y', labelsize=14)
pc = axs[l, p].contour(alphas, betas, np.log10(SNR_swap), levels=np.linspace(0, 7, 8))
# pc2 = axs[l, p].contour(alphas, betas, np.log10(SNR_swap3), levels=np.linspace(0, 7, 8))
pcf = axs[l, p].contourf(alphas, betas, np.log10(SNR_swap), levels=np.linspace(0, 7, 8))
pc0 = axs[l, p].contour(alphas, betas, np.log10(SNR_swap2), levels=np.append(-50, np.linspace(1, 7, 7)), colors='red')
pc = axs[l, p].contour(alphas, betas, np.log10(SNR_swap3), levels=np.append(-50, np.linspace(1, 7, 7)), colors='white')
axs[l, p].loglog()
axs[l, p].set_yticks(np.logspace(0, 3, 4))
axs[l, p].set_title(r'$T = %s$ GeV, $\varepsilon_{\rm turb} = %s$'%(Tss[l], epss[p]), fontsize=14)
plot_sets.axes_lines(ax=axs[l, p])
axs[l, p].set_xlabel(r'$\alpha$', fontsize=14)
paths = pc.get_paths()
vertices = paths[1].vertices.copy()
po = poss(vertices[:, 0], vertices[:, 1])
pos_vws[p, l] = po
paths0 = pc0.get_paths()
vertices0 = paths0[1].vertices.copy()
po = poss(vertices0[:, 0], vertices0[:, 1])
pos_vws2[p, l] = po
# if i == 0:
# df = pd.read_csv('T1_eps1.csv', names=['alp', 'bet'])
# df2 = pd.read_csv('T1_eps01.csv', names=['alp', 'bet'])
# df3 = df2
# if i == 2:
# df = pd.read_csv('T10_eps1.csv', names=['alp', 'bet'])
# df2 = pd.read_csv('T10_eps01.csv', names=['alp', 'bet'])
# df3 = pd.read_csv('T10_eps01_2.csv', names=['alp', 'bet'])
# if i == 4:
# df = pd.read_csv('T1e2_eps1.csv', names=['alp', 'bet'])
# df2 = pd.read_csv('T1e2_eps01.csv', names=['alp', 'bet'])
# df3 = pd.read_csv('T1e2_eps01_2.csv', names=['alp', 'bet'])
# if i == 6:
# df = pd.read_csv('T1e3_eps1.csv', names=['alp', 'bet'])
# df2 = pd.read_csv('T1e3_eps01.csv', names=['alp', 'bet'])
# df3 = pd.read_csv('T1e3_eps01_2.csv', names=['alp', 'bet'])
# # df2 = pd.read_csv('vw1_eps1_2.csv', names=['alp', 'bet'])
# if i == 8:
# df = pd.read_csv('T1e4_eps1.csv', names=['alp', 'bet'])
# df2 = pd.read_csv('T1e4_eps01.csv', names=['alp', 'bet'])
# df3 = pd.read_csv('T1e4_eps01_2.csv', names=['alp', 'bet'])
# # df2 = pd.read_csv('vw1_eps1_2.csv', names=['alp', 'bet'])
# if i == 10:
# df = pd.read_csv('T1e5_eps1.csv', names=['alp', 'bet'])
# df2 = pd.read_csv('T1e5_eps01.csv', names=['alp', 'bet'])
# df3 = pd.read_csv('T1e5_eps01_2.csv', names=['alp', 'bet'])
# # df2 = pd.read_csv('vw1_eps1_2.csv', names=['alp', 'bet'])
# if i == 12:
# df = pd.read_csv('T1e6_eps1.csv', names=['alp', 'bet'])
# df2 = pd.read_csv('T1e6_eps01.csv', names=['alp', 'bet'])
# df3 = df2
# # df2 = pd.read_csv('vw1_eps1_2.csv', names=['alp', 'bet'])
# alps = np.array(df['alp'])
# bets = np.array(df['bet'])
# alps2 = np.array(df2['alp'])
# bets2 = np.array(df2['bet'])
# alps3 = np.array(df3['alp'])
# bets3 = np.array(df3['bet'])
# axs[l, p].plot(pos_TTs[p, l].alphas, pos_TTs[p, l].betas, color='red', lw=2)
# axs[l, p].plot(pos_TTs2[p, l].alphas, pos_TTs2[p, l].betas, color='red', lw=2, ls='dashed')
if p == 0: axs[l, p].set_ylabel(r'$\beta/H_\ast$', fontsize=14)
if p == 2:
cbar = fig.colorbar(pcf, ax=axs[l, p])
ticklabs = cbar.ax.get_yticklabels()
cbar.ax.set_yticklabels(ticklabs, fontsize=14)
# axs[l, p].plot(alps, bets, color='blue')
# if p == 1:
# axs[l, p].plot(alps2, bets2, color='blue')
# axs[l, p].plot(alps3, bets3, color='green')
l += 1
fig.tight_layout()
[18]:
plt.figure(figsize=(8, 5))
cols = ['darkgreen', 'green', 'blue', 'purple', 'orange', 'red', 'darkred']
lss = ['solid', 'solid', 'dotted']
for p in [1]:
l = 0
for i in [2, 4, 6, 8, 10, 12]:
plt.loglog(pos_vws2[p, l].alphas, pos_vws2[p, l].betas, color=cols[l], ls=lss[p], lw=2, alpha=.2)
plt.loglog(pos_vws[p, l].alphas, pos_vws[p, l].betas, color=cols[l], ls=lss[p], lw=2)
if p == 1: plt.plot([], [], 'o', color=cols[l + 1], label=r'$T = %s$ GeV'%Tss[l + 1])
l+= 1
plot_sets.axes_lines()
plt.text(4e-2, 8e2, r'$\varepsilon_{\rm turb} = 0.1$')
plt.xlabel(r'$\alpha$', fontsize=24)
plt.ylabel(r'$\beta/H_\ast$', fontsize=24)
plt.xlim(3e-3, 1)
plt.ylim(1, 2e3)
plt.legend(fontsize=14, loc='upper left', frameon=False, framealpha=1)
[18]:
<matplotlib.legend.Legend at 0x1679c0cd0>
[19]:
plt.figure(figsize=(8, 5))
cols = ['darkgreen', 'green', 'blue', 'purple', 'orange', 'red', 'darkred']
lss = ['solid', 'solid', 'solid']
for p in [2]:
l = 0
for i in [2, 4, 6, 8, 10, 12]:
plt.loglog(pos_vws2[p, l].alphas, pos_vws2[p, l].betas, color=cols[l], ls=lss[p], lw=2, alpha=.2)
plt.loglog(pos_vws[p, l].alphas, pos_vws[p, l].betas, color=cols[l], ls=lss[p], lw=2)
if p == 2: plt.plot([], [], 'o', color=cols[l + 1], label=r'$T = %s$ GeV'%Tss[l + 1])
l+= 1
plot_sets.axes_lines()
plt.text(4e-2, 8e2, r'$\varepsilon_{\rm turb} = 1$')
plt.xlabel(r'$\alpha$', fontsize=24)
plt.ylabel(r'$\beta/H_\ast$', fontsize=24)
plt.xlim(3e-3, 1)
plt.ylim(1, 2e3)
plt.legend(fontsize=14, loc='upper left', frameon=False, framealpha=1)
[19]:
<matplotlib.legend.Legend at 0x1678de210>
[ ]:
[ ]:
[ ]:
[ ]:
[ ]:
[ ]:
